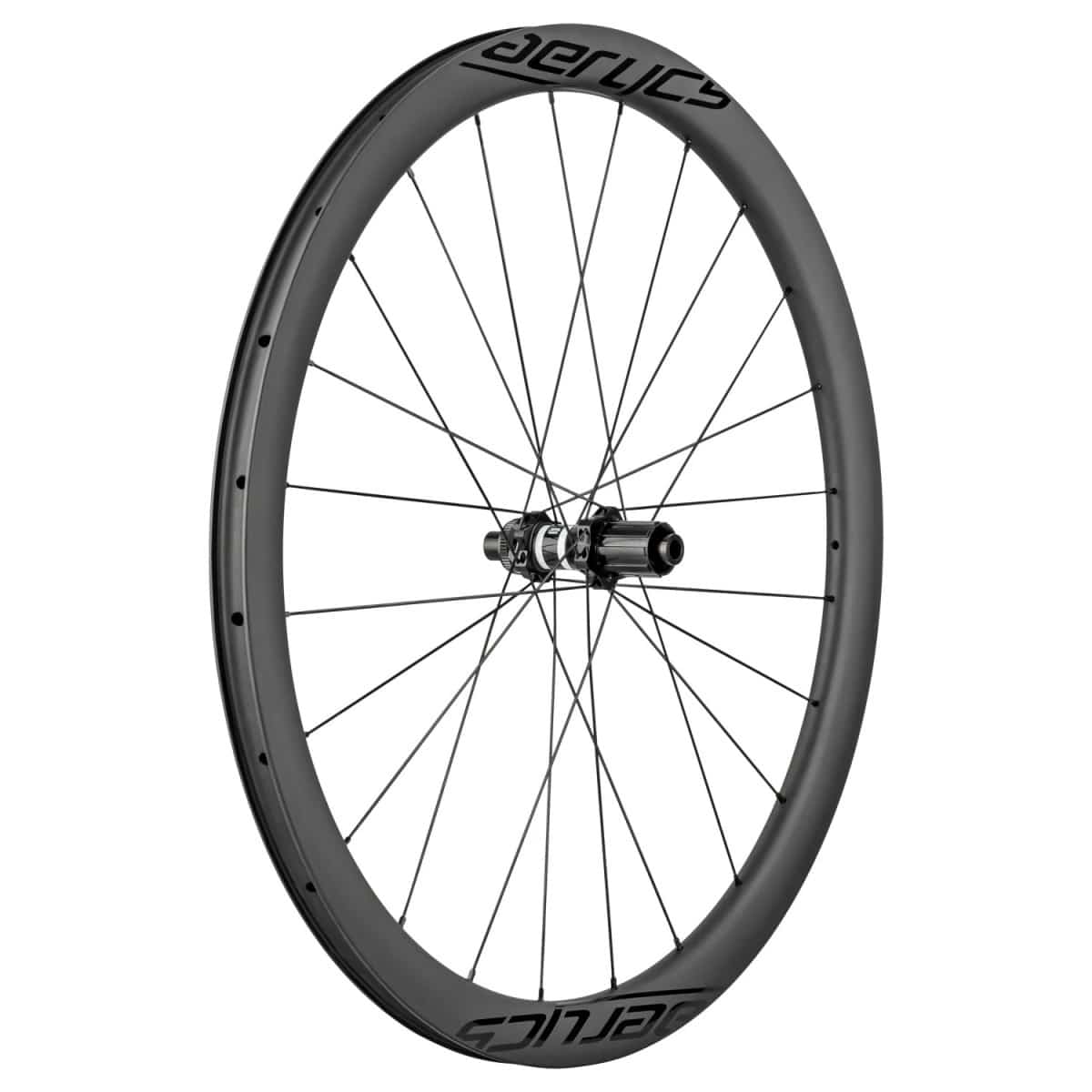

Aerycs GCX Terra
A wheelset for all off-road challenges: Our GCX Terra series combines high-performance features in lightweight and agile wheels. The GCX Terra rims have a reduced radial stiffness to better absorb bumps in the terrain and offer you maximum riding comfort.
Discover more off the road
In our GCX Terra wheels, the radial stiffness is about 10% lower than our road wheels. This improves the damping behavior of the rim and the bumps on the track are better absorbed. The reinforced sidewalls provide you with increased lateral stiffness, so you have maximum stability and high riding comfort even with an aggressive riding style. With the 50 mm high GCX Terra 50 you have even off-road aerodynamic advantages. The GCX Terra series is built with the proven DT Swiss 350 Road Disc straightpull hub: an affordable high-performance hub where reliability meets simplicity. The DT Swiss AeroComp spokes used carry a Weight limit of up to 120 kg and are therefore perfect for bikepacking tours on the gravel bike. All aerycs wheels are assembled by hand in the Hamburg area.
Specifications
Rim
Material Carbon
Inner width 22 mm
Max. Rim width 29 mm
Weight 390 g
Recommended tyre width max. 62 mm
Recommended air pressure max. 6 bar
characteristics tubeless-ready, hooked rim
Colour Decals Black
Hub
Name of hub DT Swiss 350 Road Disc straightpull Centerlock
Weight front wheel hub 136 g
Weight rear wheel hub 268 g
Material Aluminium
Axle system 12/100 mm; 12/142 mm
Spokes
Spoke model DT Swiss AERO Comp spokes
Spoke weight 6 g/ pcs.
Weight limit max. 120 kg
Number of spokes Front wheel 24 / Rear wheel 24
Spoke layout per Hand, vorne & hinten links und rechts 2-fach gekreuzt
Spoke nipple external aluminium nipples in black
